Top cover can be used to retrofit almost all bath and older similar pool suctions using 3 screws (top is not available separately). S&P spa bath suction.

Replaces older Chrome, Gold, and Plastic spa bath & pool suction covers with 3 screws or 40mm thread. (actual thread measures approx 45.5-47mm OD). Gold is not available. Screws in to a 40mm BSP socket. Pipe does not glue into this suction. White in colour.

Replaces many spa bath suctions. Replaces both plastic and metal suction covers with 3 screws from S&P and Onga - 40mm thread (approx 45-48mm OD)

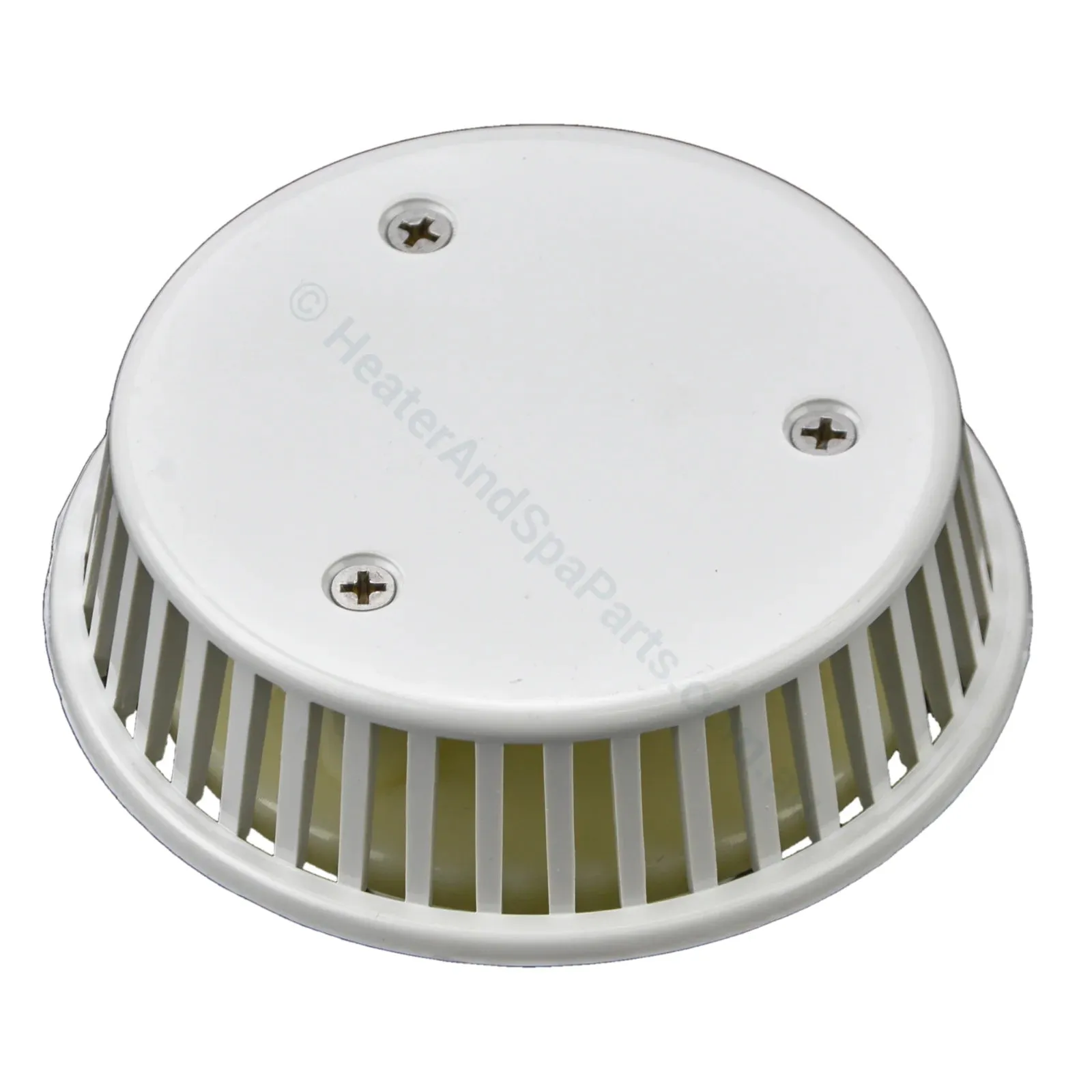

S&P Supa Suction:

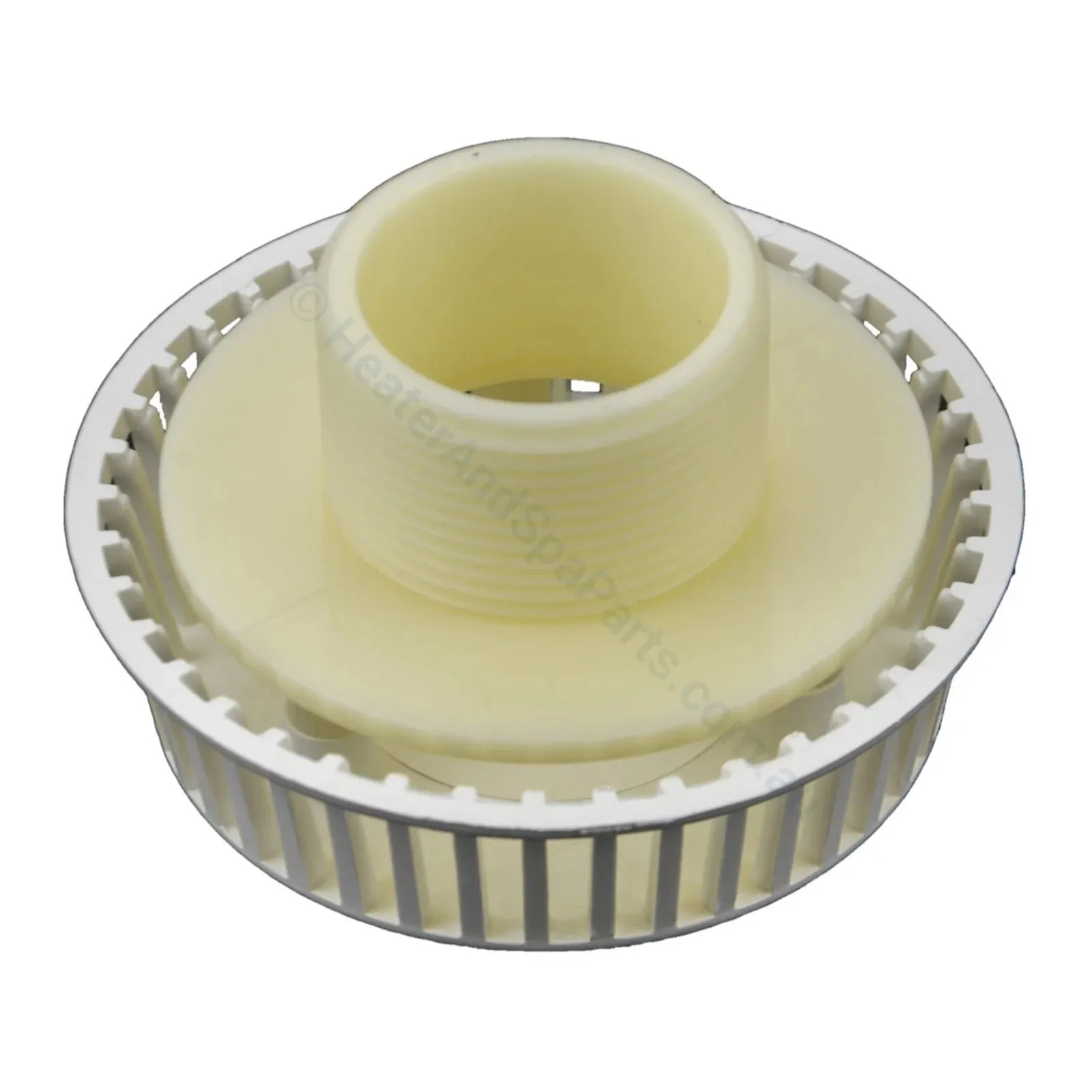

• Comes as a complete part. Cover can be unscrewed from base to replace older covers. Cover not available separately.
• 40mm BSP thread (47mm OD thread)
• 85mm / 100mm  OD faceplate diameter

• 27.5mm thick (cover itself)
• Cover screws are 49-50mm apart
• Threads into 40mm BSP faucet adaptor or elbow fittings, or any other female 40mm BSP fitting
• Hole size required: 50mm
• Not for Pipe to be glued into.

Australian Approved flow rate is 168 litres per minute. Many pumps exceed this flow rate. You may need to fit multiple suctions of this type if chosen.

wc-ASF480 / ASF480 / wcasf480
